Lenovo Think System SR650V3 | Intel Xeon-Silver 4514Y | 64 GB | 1100W | 3 Year | 7D76100ZEA
- Intel Xeon-Silver 4514Y
- 64GB TruDDR5
- 1100W
- 2U Rack
- 3-year Warranty
Free Shipping
Zero delivery charges, maximum convenience.
If You Have Any Query,
Please Contact Us
Our Sales Specialist
Name: Anjalina
Physical Store Available
100% Genuine
24/7 Support
Description

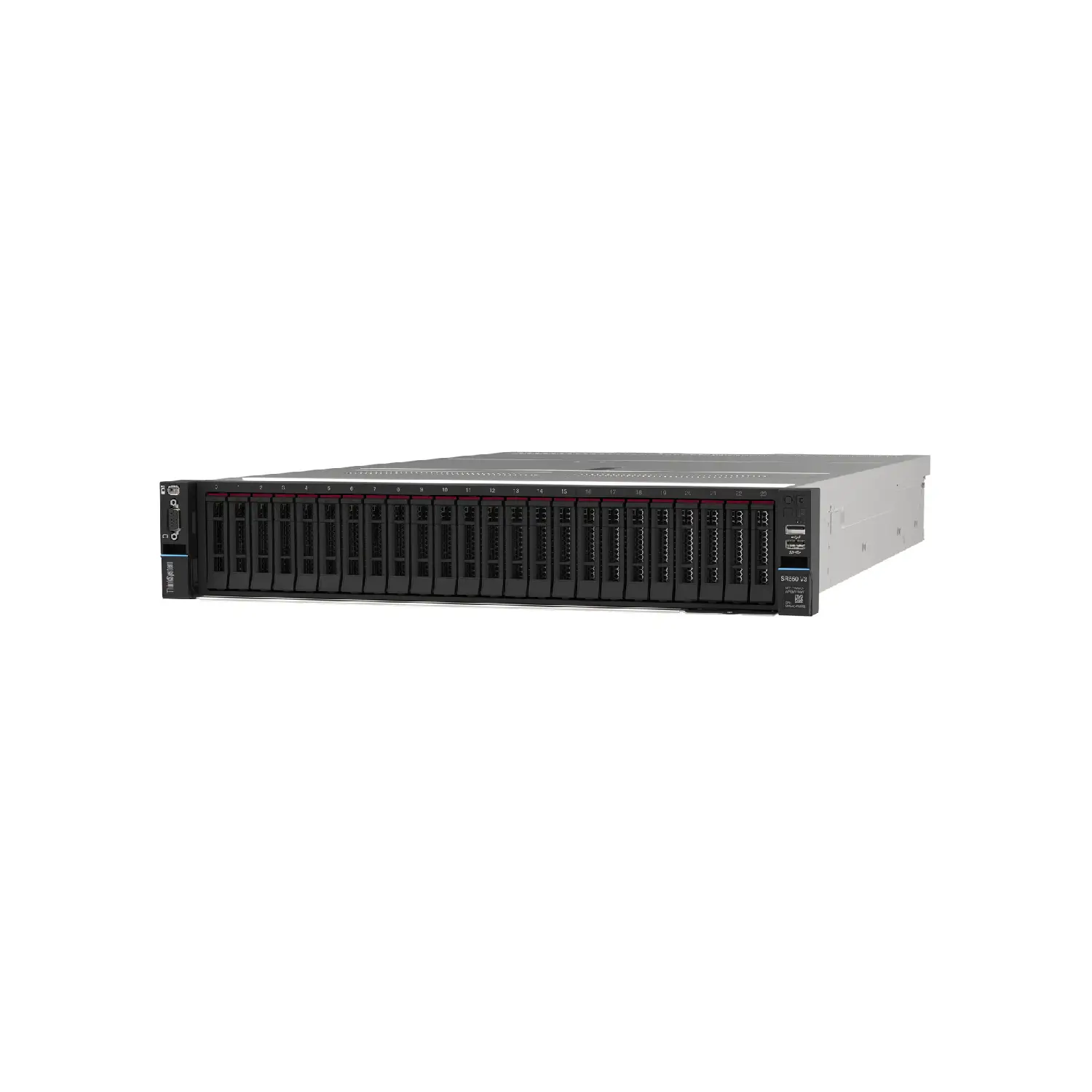

Lenovo ThinkSystem SR650 V3 – 7D76100ZEA
The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is based on the new 5th generation Intel Xeon Scalable processor family (formerly codenamed “Emerald Rapids”).
The Lenovo ThinkSystem SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
The Lenovo ThinkSystem SR650 V3 server has been designed to take advantage of the features of the 5th generation Intel Xeon Scalable processors, such as the full performance of 385W 64-core processors, support for 5600 MHz memory and PCIe Gen 5.0 support. The SR650 V3 is a very configuration-rich offering, supporting more than 30 different drive bay configurations in the front, middle and rear of the server and 5 different slot configurations at the rear of the server. This level of flexibility ensures that you can configure the server to meet the needs of your workload.
Scalability and performance
The Lenovo ThinkSystem SR650 V3 is designed for high-performance enterprise workloads, offering strong scalability, advanced processing power, and flexible expansion options for modern data center environments.
- Supports 1 or 2 Intel Xeon Scalable processors (4th & 5th Gen)
- Up to 64 cores / 128 threads with speeds up to 3.9 GHz and TDP up to 385W
- DDR5 memory support up to 32 DIMMs (16 per processor)
- Memory capacity up to 8TB using 3DS RDIMMs
- Memory speeds up to 5600 MHz (5th Gen) / 4800 MHz (4th Gen)
- Supports up to 8 single-width or 3 double-width GPUs (2U system)
- CXL 1.1 ready for next-gen compute and reduced latency workloads
Storage & Expansion
- Supports up to 40 x 2.5-inch drives or 20 x 3.5-inch drives
- Supports hybrid configurations (2.5″ + 3.5″)
- Up to 36 NVMe drives with 1:1 PCIe connectivity for maximum performance
- Up to 14 SATA drives via onboard controller for cost-efficient storage
- Up to 12 PCIe slots (Gen5 + Gen4 support) + dedicated OCP 3.0 slot
- PCIe Gen5 delivers up to 128 GB/s bandwidth for high-speed workloads
- M.2 and 7mm boot drive support with RAID-0/RAID-1 options
Availability & Serviceability
The Lenovo ThinkSystem SR650 V3 is built for continuous 24/7 operation with enterprise-grade reliability, serviceability, and predictive maintenance features.
- Advanced memory protection: SDDC (Chipkill), ADDDC, and memory mirroring
- Hot-swap drives, fans, and power supplies for maximum uptime
- Front-access design for simplified maintenance and upgrades
- Light path diagnostics with LED-based fault identification
- Lenovo XClarity Controller (XCC2) for real-time monitoring and alerts
- Proactive Platform Alerts (PFA, SMART) for predictive failure detection
- UEFI diagnostics with XClarity Provisioning Manager
- Auto-restart after AC power loss (based on system policy)
- Optional 1-year or 3-year onsite warranty with NBD support
Manageability & Security
The server provides enterprise-grade management and advanced security controls for secure and efficient IT operations.
- Lenovo XClarity Controller 2 (XCC2) with optional XCC Platinum upgrade
- Remote KVM, virtual media (ISO/IMG), power control, and boot capture
- Dedicated BMC management Ethernet port for out-of-band access
- Supports IPMI 2.0, SNMP 3.0, and Redfish REST API
- TPM 2.0 hardware security module for encryption and attestation
- Secure Boot ensures only signed OS booting
- Intel security: Execute Disable Bit and Trusted Execution Technology
- AES-NI encryption for faster and stronger data protection
Physical security: chassis intrusion switch and lockable bezel option
Energy Efficiency
The Lenovo ThinkSystem SR650 V3 is optimized for energy efficiency and reduced operational costs in modern data centers.
- Advanced Direct Water Cooling (Neptune DWC) for processor heat removal
- 80 PLUS Platinum and Titanium power supply options
- SSDs consume up to 80% less power than traditional HDDs
- Hexagonal airflow design improves cooling efficiency
- Lenovo XClarity Energy Manager for power monitoring and optimization
- Intelligent power management reduces heat output and energy usage
| Processor Name | Intel Xeon-Silver 4514Y |
| Processor Speed | 2.00 Ghz |
| Processor Core | 16 Cores |
| Processor Cache | 30 M Cache |
| Memory | 64GB TruDDR5 5600MHz (2Rx4) RDIMM. (32 DIMM Slots) |
| Hard Drive | Open Bay |
| Power Supply Type | 1 x Think System 1100W 230V Titanium Hot-Swap Gen2 |
| Storage Controller | 940-8i 4GB Flash PCIe Gen4 12Gb Adapter |
| Network Controller | No Network Card Included |
| Weight | 38.8 kg |
| Dimensions | 445 mm x 87 mm x 766 mm |
| Form Factor | 2U Rack |
| Warranty | 3 Year |
| Question | What is the Lenovo ThinkSystem SR650 V3 used for? |
| Answer | The SR650 V3 is designed for virtualization, cloud computing, database management, AI workloads, and business-critical applications. |
| Question | Is the Lenovo ThinkSystem SR650 V3 suitable for enterprise environments? |
| Answer | Yes, it is built to handle demanding enterprise workloads with high performance and scalability. |
| Question | Which processors does the SR650 V3 support? |
| Answer | The server supports the latest Intel Xeon Scalable processors. |
| Question | Can the SR650 V3 support virtualization? |
| Answer | Yes, it is optimized for VMware, Microsoft Hyper-V, and other virtualization platforms. |
| Question | Does the Lenovo SR650 V3 support SSD and NVMe storage? |
| Answer | Yes, it supports HDD, SSD, and high-speed NVMe storage options. |
| Question | Is the SR650 V3 suitable for database applications? |
| Answer | Yes, it can efficiently handle large databases and data-intensive workloads. |
| Question | Can memory be upgraded in the Lenovo ThinkSystem SR650 V3? |
| Answer | Yes, it supports extensive memory expansion to accommodate future business growth. |
| Question | Lenovo ThinkSystem SR650 V3 vs SR650 V2 – which is better? |
| Answer | The SR650 V3 offers newer-generation processors, improved performance, enhanced security, and greater efficiency. |
| Question | Lenovo ThinkSystem SR650 V3 vs SR630 V3 – what is the difference? |
| Answer | The SR650 V3 provides greater storage capacity and expansion options, while the SR630 V3 offers a more compact rack server design. |
| Question | Why should I buy the Lenovo ThinkSystem SR650 V3 from Promise Stores? |
| Answer | Promise Stores is an authorized Lenovo partner offering genuine Lenovo servers, competitive pricing, manufacturer-backed warranty, expert consultation, and reliable after-sales support to help businesses choose the right IT infrastructure solution. |
