Description

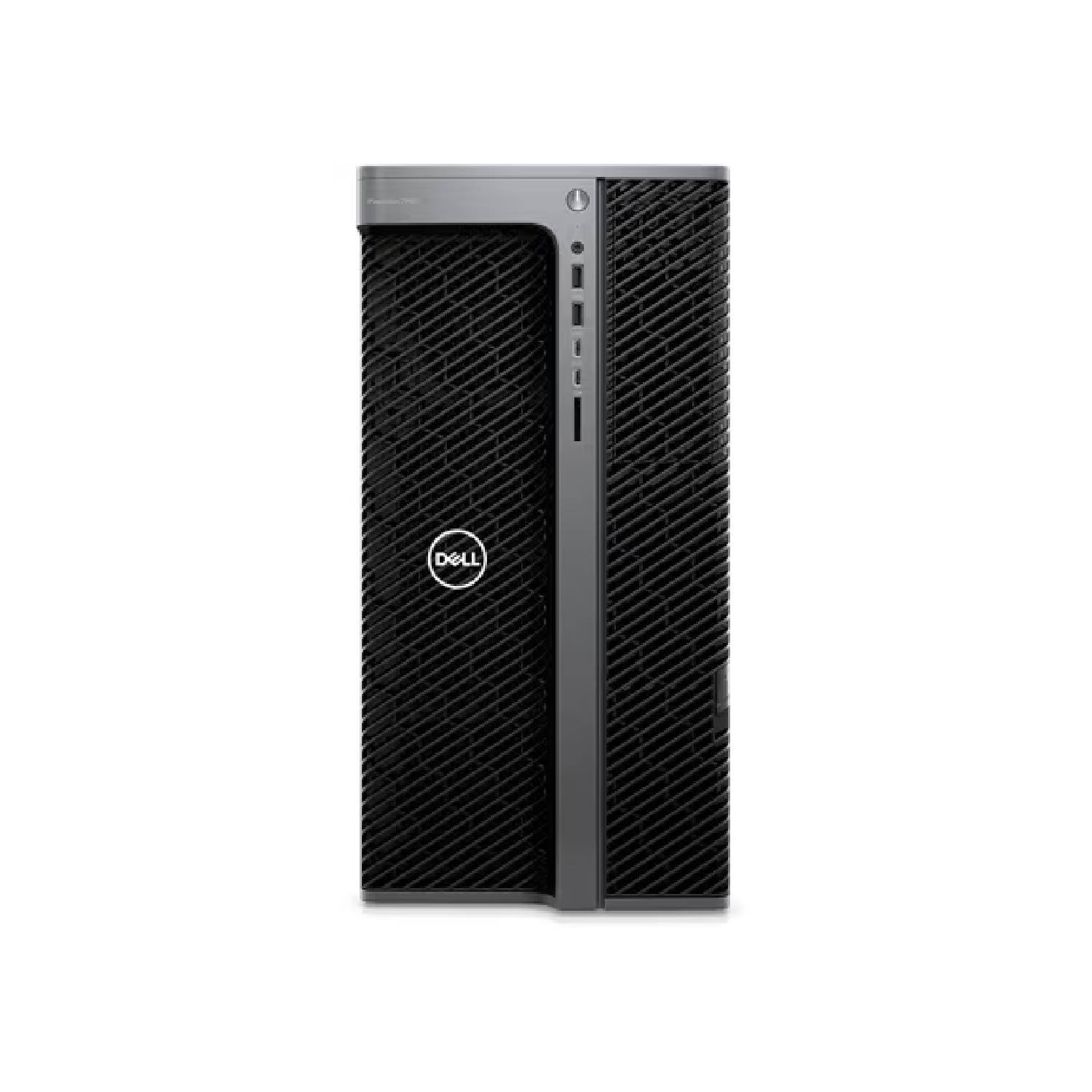

• The Dell Precision 7960 Tower Workstation is a high-performance machine designed for resource-intensive workloads, often used in industries such as 3D modeling, engineering simulations, and data analytics. Below are the detailed product features:

  1. Processor Options

  • Intel® Xeon® Processors:
    • 4th Generation Intel Xeon W processors with up to 56 cores.
    • Intel Xeon W5, W7, and W9 series available.
    • Supports Intel vPro® technology.

  2. Operating System

  • Windows:
    • Windows 11 Pro for Workstations
    • Windows 10 Pro (Downgrade option from Windows 11)
  • Linux:
    • Ubuntu Linux 22.04 LTS available

  3. Memory (RAM)

  • Supports up to 4TB of DDR5 ECC RDIMM memory.
  • Memory speeds of up to 4800 MT/s for faster data access.
  • Up to 8 memory channels available.

  4. Graphics

  • NVIDIA and AMD GPUs:
    • NVIDIA® RTX™ A6000 with 48 GB GDDR6 memory.
    • NVIDIA RTX A5000, A4000, A2000, and other options.
    • AMD Radeon™ Pro W6000 series available.

  5. Storage

  • Up to 56TB of storage:
    • SAS, SATA, PCIe NVMe SSD and HDD options.
    • RAID support (RAID 0, 1, 5, 10).
    • Up to 12 internal storage devices supported.

  6. Expansion Slots

  • PCIe 5.0 slots:
    • Five PCIe Gen 5 x16 slots for fast data transfer.
    • One PCIe Gen 3 x8 slot and a PCIe x4 slot.

  7. Power Supply

  • Up to 2000W Platinum PSU.
  • Redundant power supply option for enhanced reliability.

  8. Connectivity and Ports

  • Networking:
    • Integrated Intel® i219-LM 1G Ethernet LAN.
    • Optional Intel® i225 2.5G LAN or Intel X550 10G LAN.
    • Optional Wi-Fi 6E and Bluetooth 5.2.
  • Front Ports:
    • 2x USB 3.2 Gen 2 Type-C
    • 2x USB 3.2 Gen 1 Type-A
    • SD card reader (optional)
  • Rear Ports:
    • 4x USB 3.2 Gen 2 Type-A
    • 2x USB 2.0
    • RJ-45 Ethernet port

  9. Cooling and Thermals

  • The Dell Precision 7960 Tower Workstation has advanced liquid cooling options for high performance.
  • Efficient air-cooled thermal solutions for quieter operation.
  • Dell Precision 7960 Tower Workstation, Optimized airflow to handle heavy workloads.

  10. Security Features

  • Trusted Platform Module (TPM) 2.0 for secure hardware encryption.
  • Chassis intrusion sensor.
  • Optional Smart Card Reader and fingerprint reader.

  11. Certifications

  • ISV Certifications for compatibility with industry-leading software (AutoCAD, SolidWorks, Adobe, etc.).

  12. Dimensions and Weight

  • Dimensions:
    • Height: 437 mm (17.2 inches)
    • Width: 218 mm (8.6 inches)
    • Depth: 545 mm (21.5 inches)
  • Weight: Approximately 16.4 kg (36.16 lbs) without extra peripherals.

  13. Additional Features

  • Dell Precision 7960 Tower Workstation  Optimizer for Precision: AI-driven performance optimization for resource-intensive applications.
  • Customizable Configuration: Highly modular design for easy upgrades and future expansion.

  Use Cases

  • Ideal for AI/ML training, VR content creation, large data analytics, scientific simulations, and 4K/8K video editing.

Dell Precision 7960 Rack Server

• Processor: Intel Xeon W5-3423 (30 MB cache, 12 cores, 24 threads, up to 4.2 GHz Turbo, 220 W))
• Memory: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
• Internal SSD: Intel NVMe SSD Front FlexBay Boot 1x M.2 512GB PCIe NVMe Class 40 Solid State Drive
• Optical Drive: 16x DVD+/-RW Half Height Optical Drive
• Storage Controller: Intel Integrated SATA controller (8x  6.0Gb/s), SW RAID 0,1,5,10
• Graphic: NVIDIA RTX A400 4GB DDR6
• Network Card: 1GBE + 10GBE RJ45 Ethernet Port
• Dell Optical Mouse – MS116 – Black + Dell Wired Keyboard-KB216 – Arabic
• Operating System: Windows 11 Pro for Workstations (6 cores plus)
• Embedded Systems Management: iDRAC9, Express 16G
• Power Supply: Precision 7960 Tower 1400W Chassis
• Chassis Options: Precision 7960 Tower XCTO Base
• Warranty: 3Yr ProSupport and Next Business Day On-Site Service
