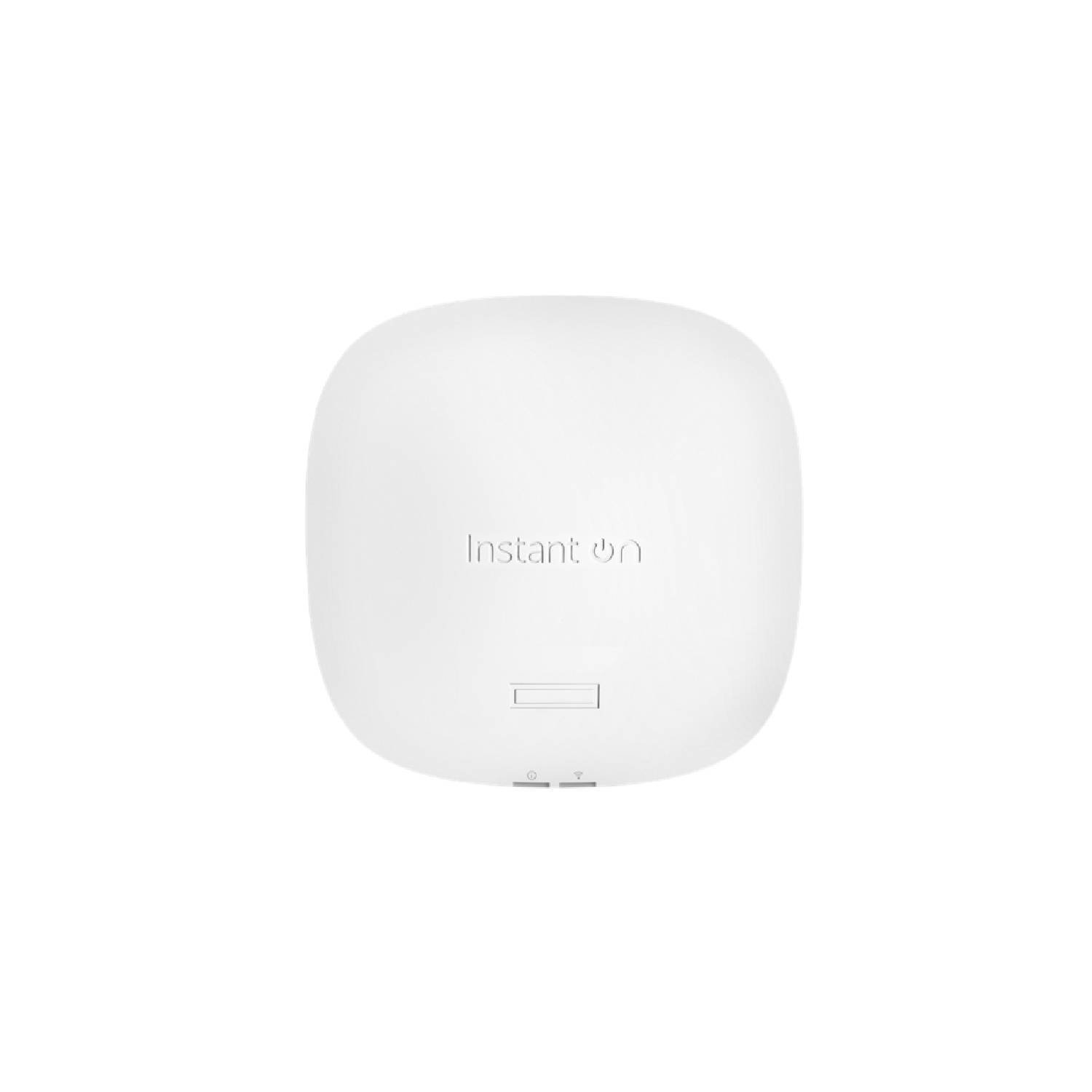

Aruba Instant On AP25 (RW) Bundle | 2 Year | R9B28A
- 1x 2.5 GbE Base-T uplink port
- Ultra-fast 802.11ax, 4×4:4z
- 5.1 x 20.3 cm
- 2 Year Warranty
- 1.18 kg
Free Shipping
Zero delivery charges, maximum convenience.
If You Have Any Query,
Please Contact Us
Our Sales Specialist
Name: Anjalina
Physical Store Available
100% Genuine
24/7 Support
Description
Aruba Instant On 1960 AP25 (RW) Bundle | 2 Year | R9B34A
The Aruba Instant Bundle is a high-performance indoor wireless solution designed to meet the demands of modern, device-dense business environments. Built on The Aruba Instant On 1960 platform, this bundle includes the AP25 access point along with a 12V / 18W power adapter, allowing quick deployment without the need for additional accessories.
Key Features
Wi-Fi 6 (802.11ax) Technology
Powered by The Aruba Instant On 1960, the AP25 supports the latest Wi-Fi 6 standard, delivering faster speeds, higher capacity, and reduced latency for busy networks.
Dual-Radio Performance
Operating on both 2.4 GHz and 5 GHz bands, The Aruba Instant On 1960 AP25 features 4×4:4 spatial streams, offering data rates of up to 4.8 Gbps on 5 GHz and 574 Mbps on 2.4 GHz, with an aggregate peak speed of 5.3 Gbps.
Advanced Wireless Capabilities
-
OFDMA – Improves network efficiency by allowing multiple devices to transmit simultaneously
-
MU-MIMO – Enhances capacity by serving multiple users at the same time
-
Target Wake Time (TWT) – Extends battery life for connected devices
These features make The Aruba Instant On 1960 AP25 ideal for high-density environments such as offices, hotels, and retail spaces.
High-Speed Connectivity
The Aruba Instant On 1960 AP25 includes a 2.5G Ethernet uplink port and supports 160 MHz channel bandwidth, ensuring ultra-fast wireless throughput suitable for HD video streaming, cloud applications, and immersive experiences.
Enterprise-Grade Security
With WPA2/WPA3, Enhanced Open, and secure guest access, The Aruba Instant On 1960 delivers strong protection for both employee and visitor networks.
Compatibility & Management
-
Backward compatible with 802.11b/g/n/ac devices
-
Easy setup and monitoring using the Aruba Instant On mobile app or cloud portal
| Certifications | EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Input voltage | Power over Ethernet (POE): 802.3at (class 4) Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU |
| Wi-Fi antenna | Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4x4 MIMO with peak antenna gain of 4.55 dBi in 5GHz (of the effective, combined pattern for both antennas in each band) |
| Connectivity, standard | Ultra-fast 802.11ax, 4x4:4 |
| Ports | Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators Reset/LED control button Kensington security slot |
| Mounting | The access point ships with a white mount clip that can attach to both walls and ceilings. Mounts that match the design of the APs can be purchased separately |
| Power consumption | Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) |
| Radio coverage | Dual radio for simultaneous dual-band operation 5 GHz 802.11ax 4x4 MIMO for up to 4.8 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6) |
| Warranty | Aruba Instant On 2-year* warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product. Foundation Care provides extended support for APs. The SKUs are HK1Y0E (3 years) and H30GZE (5 years). |
| Detailed product description | PoE Powered with the choice to select an optional power adapter. |
| Weight | 1.18 kg (2.6 lb) |
| Dimensions | 5.1 x 20.3 cm (2 x 8 x 8 in) |
